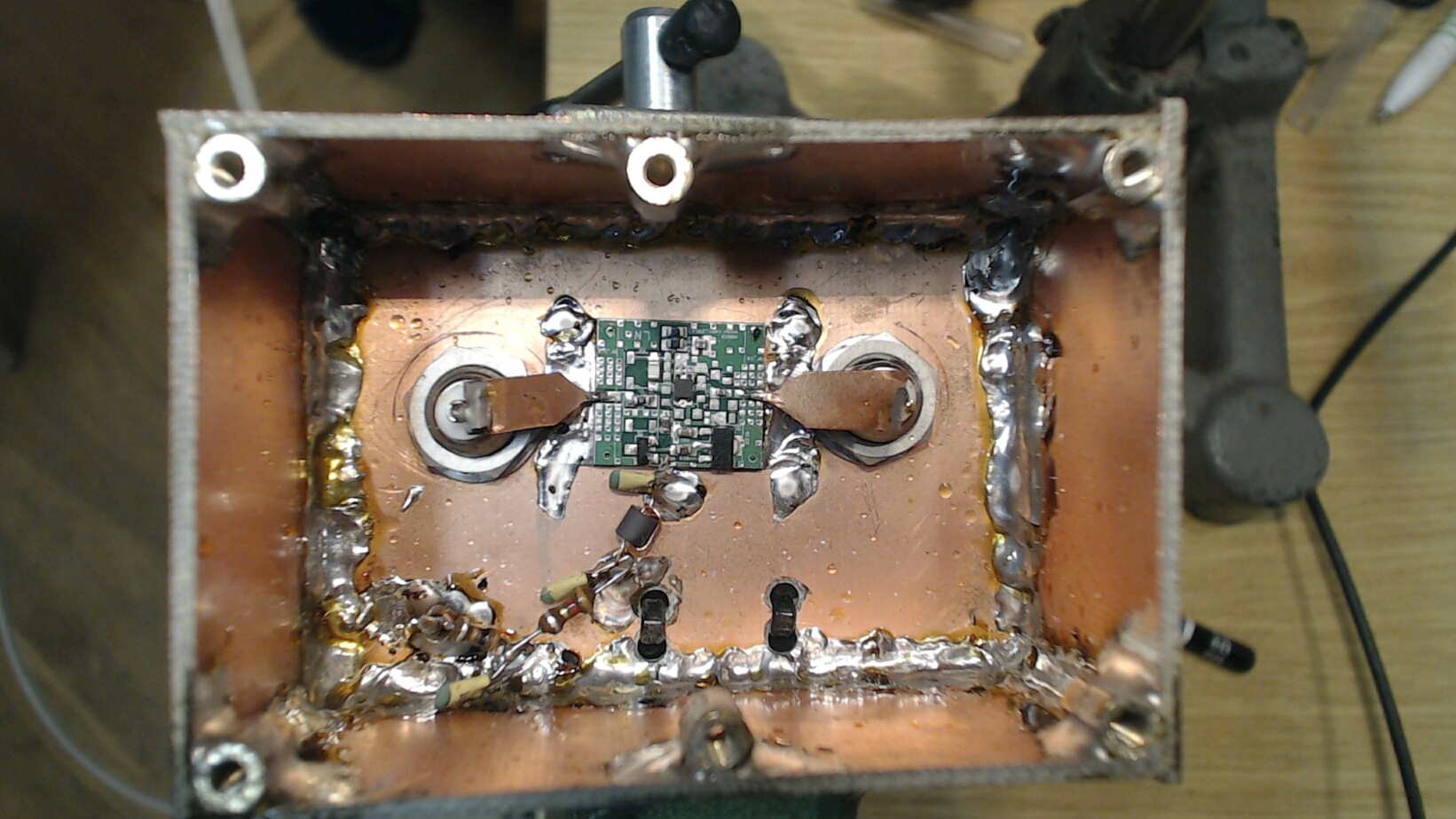

AD6IW. the paint on the groundplanes of the bottom side of the PCB is removed on the input and on the output side. A thin copper foil is soldered on the grround plane on each side so it extends about 4 mm outside the board on each side. The copper foil is then soldered to the bottom wall of the box.

---

---

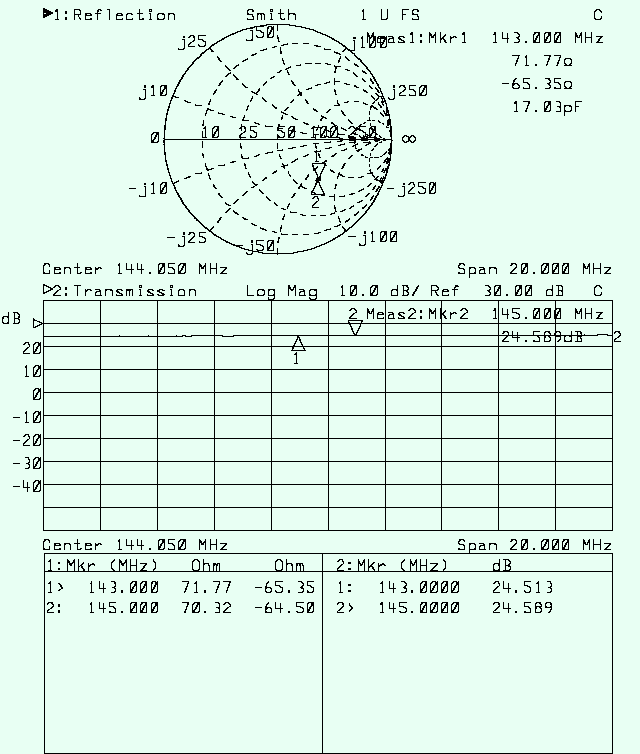

AD6IW. Input impedance and forward gain.

---

---

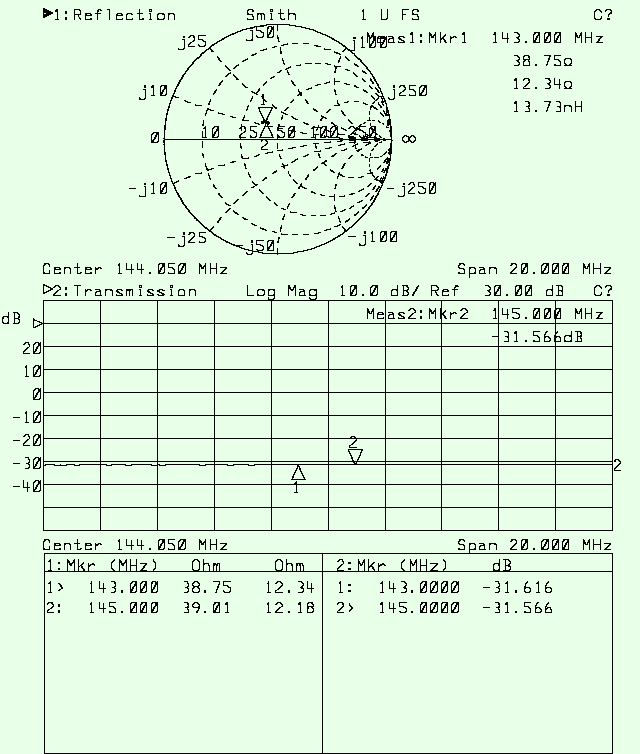

AD6IW. Output impedance and reverse isolation.

---
